Spring Boot simplifies Java application development by providing auto-configuration, embedded servers, and starter dependencies. A Many-to-Many relationship means that multiple records in one entity can be associated with multiple records in another entity.

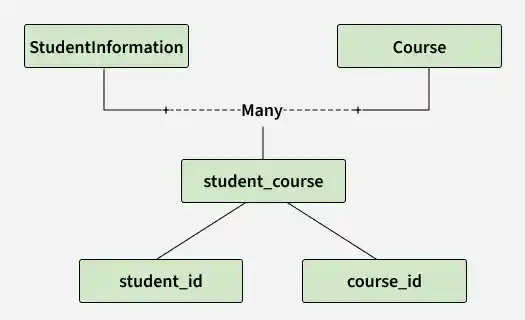

A many-to-many relationship generally requires a join table.
@JoinTable defines the join table and its foreign-key columns.

One-to-One Mapping in JPA

A One-to-One relationship means one record of one entity is associated with exactly one record of another entity.
It is represented using the @OneToOne annotation in JPA.
A One-to-One relationship can be unidirectional or bidirectional.

One-to-One mapping is commonly used for relationships such as:

Employee-> Employee Details
User-> User Profile
Person-> Passport
Student-> Student Profile

Step-by-Step Implementation

Step 1: Create a Spring Boot Project

Use Spring Initializr to generate the project. Keep the project configuration:

Project: Maven
Language: Java
Spring Boot: 2.5.6
Packaging: JAR
Java: 11
Dependencies: Spring Web, Spring Data JPA, MySQL Driver

Click on Generate to download the starter project.

Step 2: Import the Project into IDE

Extract the downloaded ZIP file.
Open the project in your IDE.
Select the pom.xml file if required.
Wait for Maven dependencies to download.

Step 3: Configure Database Properties

Add the following properties to application.properties:

spring.datasource.username=root
spring.datasource.password=Aayush
spring.datasource.url=jdbc:mysql://localhost:3306/mapping
spring.jpa.hibernate.ddl-auto=update
spring.jpa.show-sql=true

Step 4: Create Entity Classes

Create a Models package and add the following classes.

StudentInformation Entity

Java

package com.example.Mapping.Models;

import javax.persistence.*;
import java.util.HashSet;
import java.util.Set;

@Entity
@Table(name = "student")
public class StudentInformation {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private int rollno;

    private String name;

    @ManyToMany
    @JoinTable(
        name = "student_course",
        joinColumns = @JoinColumn(name = "student_id"),
        inverseJoinColumns = @JoinColumn(name = "course_id")
    )
    private Set<Course> courses = new HashSet<>();

    public StudentInformation() {
    }

    public StudentInformation(int rollno, String name) {
        this.rollno = rollno;
        this.name = name;
    }

    public int getRollno() {
        return rollno;
    }

    public void setRollno(int rollno) {
        this.rollno = rollno;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Set<Course> getCourses() {
        return courses;
    }

    public void setCourses(Set<Course> courses) {
        this.courses = courses;
    }
}

Explanation:

@ManyToMany specifies that one student can be associated with multiple courses.
@JoinTable specifies the intermediate table used to maintain the relationship.
student_course is the join table.
student_id stores the student reference.
course_id stores the course reference.
Set<Course> stores multiple courses associated with a student.

Course Entity

Java

package com.example.Mapping.Models;

import javax.persistence.*;
import java.util.HashSet;
import java.util.Set;

@Entity
@Table(name = "course")
public class Course {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private int id;

    private String courseName;

    @ManyToMany(mappedBy = "courses")
    private Set<StudentInformation> students = new HashSet<>();

    public Course() {
    }

    public Course(int id, String courseName) {
        this.id = id;
        this.courseName = courseName;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getCourseName() {
        return courseName;
    }

    public void setCourseName(String courseName) {
        this.courseName = courseName;
    }

    public Set<StudentInformation> getStudents() {
        return students;
    }

    public void setStudents(Set<StudentInformation> students) {
        this.students = students;
    }
}

Step 5: Create Repository Interfaces

Create a Repository package and add the following interfaces.

Student Repository:

Java

package com.example.Mapping.Repository;

import com.example.Mapping.Models.StudentInformation;
import org.springframework.data.jpa.repository.JpaRepository;

public interface StudentRepo
        extends JpaRepository<StudentInformation, Integer> {
}

Course Repository:

Java

package com.example.Mapping.Repository;

import com.example.Mapping.Models.Course;
import org.springframework.data.jpa.repository.JpaRepository;

public interface CourseRepo
        extends JpaRepository<Course, Integer> {
}

Explanation:

JpaRepository provides predefined CRUD operations.
StudentRepo performs database operations on the student table.
CourseRepo performs database operations on the course table.
No repository implementation class is required.

Step 6: Insert Data Using CommandLineRunner

The relationship can be created using CommandLineRunner.

Java

package com.example.Mapping;

import com.example.Mapping.Models.Course;
import com.example.Mapping.Models.StudentInformation;
import com.example.Mapping.Repository.CourseRepo;
import com.example.Mapping.Repository.StudentRepo;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MappingApplication implements CommandLineRunner {

    @Autowired
    StudentRepo studentRepo;

    @Autowired
    CourseRepo courseRepo;

    public static void main(String[] args) {
        SpringApplication.run(MappingApplication.class, args);
    }

    @Override
    public void run(String... args) {

        Course java = new Course(1, "Java");
        Course springBoot = new Course(2, "Spring Boot");

        courseRepo.save(java);
        courseRepo.save(springBoot);

        StudentInformation student =
                new StudentInformation(1, "Aayush");

        student.getCourses().add(java);
        student.getCourses().add(springBoot);

        studentRepo.save(student);
    }
}

Explanation:

CommandLineRunner executes the code after the Spring Boot application starts.
Two courses, Java and Spring Boot, are created and saved.
A student named Aayush is created.
Both courses are added to the student's courses collection.

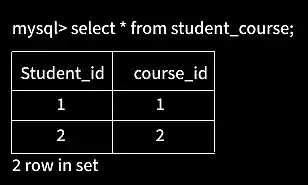

Saving the student creates the corresponding entries in the student_course join table.
