Connect Nodes at Same Level

Last Updated : 13 Oct, 2026

Given a binary tree, connect each node to its immediate right neighbor at the same level using the nextRight pointer. If no such neighbor exists, set the nextRight pointer to NULL.

Examples:

Input: root = [1, 2, 3, 4, 5, N, 6]

Output: [1, #, 2, 3, #, 4, 5, 6, #]

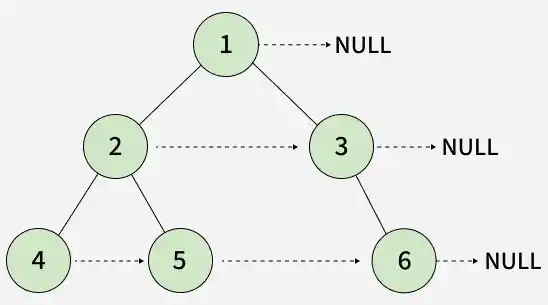

Explanation: The connected tree is:

Table of Content

[Naive Approach] Level Order Traversal - O(n) Time and O(n) Space
[Expected Approach] Using Set Next Rights - O(n) Time and O(1) Space

[Naive Approach] Level Order Traversal - O(n) Time and O(n) Space

The idea is to traverse the binary tree level by level using a queue and connect adjacent nodes using their nextRight pointers.

Insert the root node into the queue.
Store the queue size in nodeCount to identify the number of nodes at the current level.
Process exactly nodeCount nodes, removing each node from the queue.
Set each node's nextRight to the next node at the same level using q.front(). If it is the last node at that level, set nextRight to NULL.
Add the left and right children of each node to the queue, if they exist.
Repeat until the queue becomes empty.

C++

#include <iostream>
using namespace std;

class Node {
public:
    int data;
    Node *left;
    Node *right;
    Node *nextRight;

    Node(int key) {
        data = key;
        left = nullptr;
        right = nullptr;
        nextRight = nullptr;
    }
};

// Connect nodes using node count (level size)
Node* connect(Node *root) {
    if (!root) return root;

    queue<Node*> q;
    q.push(root);

    while (!q.empty()) {
        int nodeCount = q.size();

        for (int i = 0; i < nodeCount; i++) {
            Node* node = q.front();
            q.pop();

            // Set nextRight
            if (i == nodeCount - 1)
                node->nextRight = nullptr;
            else
                node->nextRight = q.front();

            // Push children
            if (node->left) q.push(node->left);
            if (node->right) q.push(node->right);
        }
    }

    return root;
}

// Print level order using nextRight pointers
void printLevels(Node* root) {
    Node* levelStart = root;

    while (levelStart != nullptr) {
        Node* curr = levelStart;

        while (curr != nullptr) {
            cout << curr->data << " ";
            curr = curr->nextRight;
        }

        cout << "# ";

        // Find the first node of the next level
        if (levelStart->left != nullptr)
            levelStart = levelStart->left;
        else if (levelStart->right != nullptr)
            levelStart = levelStart->right;
        else
            break;
    }
}
int main() {

    // Constructed binary tree
    //       10
    //      /  \
    //    8     2
    //   /     /
    //  3     4

    Node *root = new Node(10);
    root->left = new Node(8);
    root->right = new Node(2);
    root->left->left = new Node(3);
    root->right->left = new Node(4);

    connect(root);
    printLevels(root);

    return 0;
}

Java

import java.util.LinkedList;
import java.util.Queue;

class Node {
    int data;
    Node left, right, nextRight;

    Node(int key)
    {
        data = key;
        left = right = nextRight = null;
    }
}

class GFG {

    // Connect nodes using node count (level size)
    static Node connect(Node root)
    {
        if (root == null)
            return root;

        Queue<Node> q = new LinkedList<>();
        q.add(root);

        while (!q.isEmpty()) {
            int nodeCount = q.size();

            for (int i = 0; i < nodeCount; i++) {
                Node node = q.poll();

                // Set nextRight
                if (i == nodeCount - 1)
                    node.nextRight = null;
                else
                    node.nextRight = q.peek();

                // Push children
                if (node.left != null)
                    q.add(node.left);
                if (node.right != null)
                    q.add(node.right);
            }
        }

        return root;
    }

    // Print level order using nextRight pointers
    static void printLevels(Node root)
    {
        Node levelStart = root;

        while (levelStart != null) {
            Node curr = levelStart;

            while (curr != null) {
                System.out.print(curr.data + " ");
                curr = curr.nextRight;
            }

            System.out.print("# ");

            // Find the first node of the next level
            if (levelStart.left != null)
                levelStart = levelStart.left;
            else if (levelStart.right != null)
                levelStart = levelStart.right;
            else
                break;
        }
    }

    public static void main(String[] args)
    {
        // Constructed binary tree
        //       10
        //      /  \
        //    8     2
        //   /     /
        //  3     4

        Node root = new Node(10);
        root.left = new Node(8);
        root.right = new Node(2);
        root.left.left = new Node(3);
        root.right.left = new Node(4);

        connect(root);
        printLevels(root);
    }
}

Python

from collections import deque

class Node:
    def __init__(self, key):
        self.data = key
        self.left = None
        self.right = None
        self.nextRight = None

# Connect nodes using node count (level size)

def connect(root):
    if not root:
        return root

    q = deque([root])

    while q:
        nodeCount = len(q)

        for i in range(nodeCount):
            node = q.popleft()

            # Set nextRight
            if i == nodeCount - 1:
                node.nextRight = None
            else:
                node.nextRight = q[0]

            # Push children
            if node.left:
                q.append(node.left)
            if node.right:
                q.append(node.right)

    return root

# Print level order using nextRight pointers


def printLevels(root):
    levelStart = root

    while levelStart is not None:
        curr = levelStart

        while curr is not None:
            print(curr.data, end=" ")
            curr = curr.nextRight

        print("#", end=" ")

        # Find the first node of the next level
        if levelStart.left is not None:
            levelStart = levelStart.left
        elif levelStart.right is not None:
            levelStart = levelStart.right
        else:
            break
# Constructed binary tree
#      10
#     /  \
#    8     2
#   /     /
#  3     4


if __name__ == "__main__":
    root = Node(10)
    root.left = Node(8)
    root.right = Node(2)
    root.left.left = Node(3)
    root.right.left = Node(4)

    connect(root)
    printLevels(root)

C#

using System;
using System.Collections.Generic;

public class Node {
    public int data;
    public Node left, right, nextRight;

    public Node(int key)
    {
        data = key;
        left = right = nextRight = null;
    }
}

class GFG {

    // Connect nodes using node count (level size)
    public static Node connect(Node root)
    {
        if (root == null)
            return root;

        Queue<Node> q = new Queue<Node>();
        q.Enqueue(root);

        while (q.Count > 0) {
            int nodeCount = q.Count;

            for (int i = 0; i < nodeCount; i++) {
                Node node = q.Dequeue();

                // Set nextRight
                if (i == nodeCount - 1)
                    node.nextRight = null;
                else
                    node.nextRight = q.Peek();

                // Push children
                if (node.left != null)
                    q.Enqueue(node.left);
                if (node.right != null)
                    q.Enqueue(node.right);
            }
        }

        return root;
    }

    // Print level order using nextRight pointers
    static void printLevels(Node root)
    {
        Node levelStart = root;

        while (levelStart != null) {
            Node curr = levelStart;

            while (curr != null) {
                Console.Write(curr.data + " ");
                curr = curr.nextRight;
            }

            Console.Write("# ");

            // Find the first node of the next level
            if (levelStart.left != null)
                levelStart = levelStart.left;
            else if (levelStart.right != null)
                levelStart = levelStart.right;
            else
                break;
        }
    }

    public static void Main()
    {
        // Constructed binary tree
        //       10
        //      /  \
        //    8     2
        //   /     /
        //  3     4

        Node root = new Node(10);
        root.left = new Node(8);
        root.right = new Node(2);
        root.left.left = new Node(3);
        root.right.left = new Node(4);

        connect(root);
        printLevels(root);
    }
}

JavaScript

class Node {
    constructor(key) {
        this.data = key;
        this.left = null;
        this.right = null;
        this.nextRight = null;
    }
}

// Connect nodes using node count (level size)
function connect(root) {
    if (!root) return root;

    let q = [root];

    while (q.length > 0) {
        let nodeCount = q.length;

        for (let i = 0; i < nodeCount; i++) {
            let node = q.shift();

            // Set nextRight
            if (i === nodeCount - 1)
                node.nextRight = null;
            else
                node.nextRight = q[0];

            // Push children
            if (node.left) q.push(node.left);
            if (node.right) q.push(node.right);
        }
    }

    return root;
}
// Print level order using nextRight pointers
function printLevels(root) {
    let levelStart = root;

    while (levelStart !== null) {
        let curr = levelStart;

        while (curr !== null) {
            console.log; // No operation
            process.stdout.write(curr.data + " ");
            curr = curr.nextRight;
        }

        process.stdout.write("# ");

        // Find the first node of the next level
        if (levelStart.left !== null)
            levelStart = levelStart.left;
        else if (levelStart.right !== null)
            levelStart = levelStart.right;
        else
            break;
    }
}

// Driver code

// Constructed binary tree
//       10
//      /  \
//    8     2
//   /     /
//  3     4

// Driver Code
let root = new Node(10);
root.left = new Node(8);
root.right = new Node(2);
root.left.left = new Node(3);
root.right.left = new Node(4);

connect(root);
printLevels(root)

Output

10 # 8 2 # 3 4 #

[Expected Approach] Using Set Next Rights - O(n) Time and O(1) Space

The idea is to use the previously set nextRight pointers to traverse each level and connect the children of its nodes to form the next level, without using a queue.

Set the root's nextRight pointer to NULL, as it has no node to its right.
Traverse the current level using the nextRight pointers.
For each node, connect its left child to its right child if both children exist.
If a child has no sibling to its right, use getNextRight() to find the next available child among the nodes to its right at the current level.
After processing the current level, move to the leftmost available node at the next level and repeat until all levels are connected.

The getNextRight() function searches the remaining nodes of the current level and returns the leftmost child it finds. If no such child exists, it returns NULL.

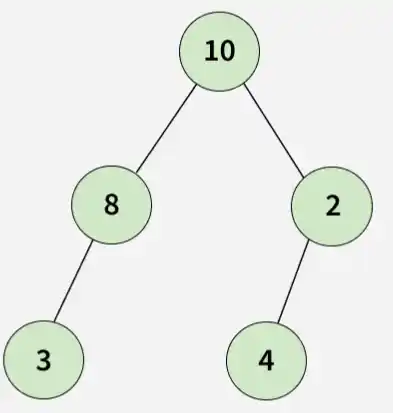

Consider Binary Tree:

frame_1000001833

Initially, all nextRight pointers are NULL.

Step 1: Node 10 has children 8 and 2. Connect them by setting 8.nextRight = 2.

Step 2:

Move to node 8. Its left child is 3, but it has no right child.
The getNextRight(8) function finds node 4, the left child of node 2. Connect 3.nextRight = 4.
Node 2 has no node to its right, so set 4.nextRight = NULL.

Step 3: Move to node 3. Nodes 3 and 4 have no children, so the process ends.

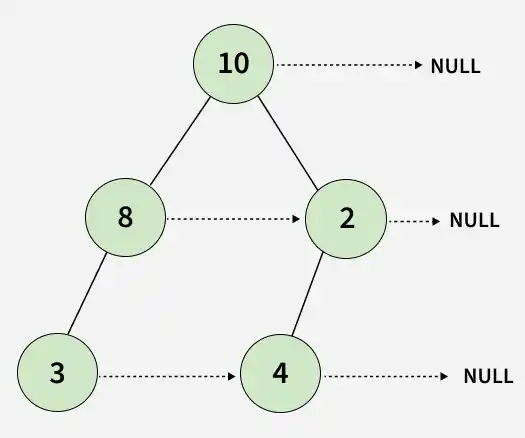

The final nextRight connections are:

frame_1000001834

C++

#include <iostream>
using namespace std;

class Node {
public:
    int data;
    Node *left, *right, *nextRight;
    Node(int val) {
        data = val;
        left = right = nextRight = nullptr;
    }
};

// Return the first node on the right
// side of q and at the next level
Node *getNextRight(Node *p) {

    Node *temp = p->nextRight;

    // Keep moving to next sibling until
    // you find a sibling that has at least
    // one children
    while (temp != nullptr) {
        if (temp->left != nullptr)
            return temp->left;
        if (temp->right != nullptr)
            return temp->right;
        temp = temp->nextRight;
    }

    return nullptr;
}

// Function to connect nodes at the same level
Node* connect(Node *root) {

    Node *temp;
    if (!root)
        return nullptr ;

    root->nextRight = nullptr;

    while (root != nullptr) {
        Node *q = root;

        // Traverse all nodes at the current level
        while (q != nullptr) {
            if (q->left) {

                if (q->right)
                    q->left->nextRight = q->right;
                else
                    q->left->nextRight = getNextRight(q);
            }

            if (q->right)
                q->right->nextRight = getNextRight(q);
            q = q->nextRight;
        }

        // Move to the next level starting with the leftmost node
        if (root->left)
            root = root->left;
        else if (root->right)
            root = root->right;
        else
            root = getNextRight(root);
    }

    return root;
}

// Print level order using nextRight pointers
void printLevels(Node* root) {
    Node* levelStart = root;

    while (levelStart != nullptr) {
        Node* curr = levelStart;

        while (curr != nullptr) {
            cout << curr->data << " ";
            curr = curr->nextRight;
        }

        cout << "# ";

        // Find the first node of the next level
        if (levelStart->left != nullptr)
            levelStart = levelStart->left;
        else if (levelStart->right != nullptr)
            levelStart = levelStart->right;
        else
            break;
    }
}

int main() {

    // Constructed binary tree
    //       10
    //      /  \
    //    8     2
    //   /     /
    //  3     4

    Node *root = new Node(10);
    root->left = new Node(8);
    root->right = new Node(2);
    root->left->left = new Node(3);
    root->right->left = new Node(4);

    connect(root);
    printLevels(root);
    return 0;
}

Java

class Node {
    public int data;
    public Node left, right, nextRight;

    public Node(int val)
    {
        data = val;
        left = right = nextRight = null;
    }
}

public class GFG {

    // Return the first node on the right
    // side of q and at the next level
    static Node getNextRight(Node p)
    {
        Node temp = p.nextRight;

        // Keep moving to next sibling until
        // you find a sibling that has at least
        // one children
        while (temp != null) {
            if (temp.left != null)
                return temp.left;
            if (temp.right != null)
                return temp.right;
            temp = temp.nextRight;
        }
        return null;
    }

    // Function to connect nodes at the same level
    static Node connect(Node root)
    {
        Node temp;
        if (root == null)
            return null;

        root.nextRight = null;
        while (root != null) {
            Node q = root;
            // Traverse all nodes at the current level
            while (q != null) {
                if (q.left != null) {
                    if (q.right != null)
                        q.left.nextRight = q.right;
                    else
                        q.left.nextRight = getNextRight(q);
                }
                if (q.right != null)
                    q.right.nextRight = getNextRight(q);
                q = q.nextRight;
            }
            // Move to the next level starting with the
            // leftmost node
            if (root.left != null)
                root = root.left;
            else if (root.right != null)
                root = root.right;
            else
                root = getNextRight(root);
        }
        return root;
    }

    // Print level order using nextRight pointers
    static void printLevels(Node root)
    {
        Node levelStart = root;

        while (levelStart != null) {
            Node curr = levelStart;

            while (curr != null) {
                System.out.print(curr.data + " ");
                curr = curr.nextRight;
            }

            System.out.print("# ");

            // Find the first node of the next level
            if (levelStart.left != null)
                levelStart = levelStart.left;
            else if (levelStart.right != null)
                levelStart = levelStart.right;
            else
                break;
        }
    }

    public static void main(String[] args)
    {
        // Constructed binary tree
        //       10
        //      /  \
        //    8     2
        //   /     /
        //  3     4
        Node root = new Node(10);
        root.left = new Node(8);
        root.right = new Node(2);
        root.left.left = new Node(3);
        root.right.left = new Node(4);
        connect(root);
        printLevels(root);
    }
}

Python

class Node:
    def __init__(self, val):
        self.data = val
        self.left = self.right = self.nextRight = None

# Return the first node on the right
# side of q and at the next level
def get_next_right(p):
    temp = p.nextRight
    while temp is not None:
        if temp.left is not None:
            return temp.left
        if temp.right is not None:
            return temp.right
        temp = temp.nextRight
    return None

# Function to connect nodes at the same level
def connect(root):
    if root is None:
        return None
    root.nextRight = None
    while root is not None:
        q = root
        while q is not None:
            if q.left is not None:
                if q.right is not None:
                    q.left.nextRight = q.right
                else:
                    q.left.nextRight = get_next_right(q)
            if q.right is not None:
                q.right.nextRight = get_next_right(q)
            q = q.nextRight
        if root.left is not None:
            root = root.left
        elif root.right is not None:
            root = root.right
        else:
            root = get_next_right(root)
    return root

# Print level order using nextRight pointers
def printLevels(root):
    levelStart = root

    while levelStart is not None:
        curr = levelStart

        while curr is not None:
            print(curr.data, end=" ")
            curr = curr.nextRight

        print("#", end=" ")

        # Find the first node of the next level
        if levelStart.left is not None:
            levelStart = levelStart.left
        elif levelStart.right is not None:
            levelStart = levelStart.right
        else:
            break


if __name__ == '__main__':
    # Constructed binary tree
    #       10
    #      /  \
    #    8     2
    #   /     /
    #  3     4
    root = Node(10)
    root.left = Node(8)
    root.right = Node(2)
    root.left.left = Node(3)
    root.right.left = Node(4)
    connect(root)
    printLevels(root)

C#

using System;

class Node {
    public int data;
    public Node left, right, nextRight;

    public Node(int val)
    {
        data = val;
        left = right = nextRight = null;
    }
}

class GFG {

    // Return the first child on the right of p, at the next
    // level
    static Node getNextRight(Node p)
    {
        Node temp = p.nextRight;

        // Move to the next sibling until one has at least
        // one child
        while (temp != null) {
            if (temp.left != null)
                return temp.left;
            if (temp.right != null)
                return temp.right;
            temp = temp.nextRight;
        }
        return null;
    }

    // Connect nodes at the same level
    static Node connect(Node root)
    {
        if (root == null)
            return null;

        // Save the head, as root moves down the levels
        Node head = root;
        root.nextRight = null;

        while (root != null) {
            Node q = root;

            // Traverse all nodes at the current level
            while (q != null) {
                if (q.left != null) {

                    // Connect left child to right child,
                    // else to the next available child
                    if (q.right != null)
                        q.left.nextRight = q.right;
                    else
                        q.left.nextRight = getNextRight(q);
                }

                // Connect right child to the next available
                // child
                if (q.right != null)
                    q.right.nextRight = getNextRight(q);

                q = q.nextRight;
            }

            // Move to the first node of the next level
            if (root.left != null)
                root = root.left;
            else if (root.right != null)
                root = root.right;
            else
                root = getNextRight(root);
        }
        return head;
    }

    // Print level order using nextRight pointers
    static void printLevels(Node root)
    {
        Node levelStart = root;

        while (levelStart != null) {
            Node curr = levelStart;

            while (curr != null) {
                Console.Write(curr.data + " ");
                curr = curr.nextRight;
            }

            Console.Write("# ");

            // Find the first node of the next level
            if (levelStart.left != null)
                levelStart = levelStart.left;
            else if (levelStart.right != null)
                levelStart = levelStart.right;
            else
                break;
        }
    }

    static void Main()
    {

        // Constructed binary tree
        //       10
        //      /  \
        //     8    2
        //    /    /
        //   3    4
        Node root = new Node(10);
        root.left = new Node(8);
        root.right = new Node(2);
        root.left.left = new Node(3);
        root.right.left = new Node(4);

        connect(root);
        printLevels(root);
    }
}

JavaScript

class Node {
    constructor(val) {
        this.data = val;
        this.left = this.right = this.nextRight = null;
    }
}

// Return the first node on the right
// side of q and at the next level
function getNextRight(p) {
    let temp = p.nextRight;
    while (temp!== null) {
        if (temp.left!== null)
            return temp.left;
        if (temp.right!== null)
            return temp.right;
        temp = temp.nextRight;
    }
    return null;
}

// Function to connect nodes at the same level
function connect(root) {
    if (root === null)
        return null;
    root.nextRight = null;
    while (root!== null) {
        let q = root;
        while (q!== null) {
            if (q.left!== null) {
                if (q.right!== null)
                    q.left.nextRight = q.right;
                else
                    q.left.nextRight = getNextRight(q);
            }
            if (q.right!== null)
                q.right.nextRight = getNextRight(q);
            q = q.nextRight;
        }
        if (root.left!== null)
            root = root.left;
        else if (root.right!== null)
            root = root.right;
        else
            root = getNextRight(root);
    }
    return root;
}

// Print level order using nextRight pointers
function printLevels(root) {
    let levelStart = root;

    while (levelStart !== null) {
        let curr = levelStart;

        while (curr !== null) {
            console.log; // No operation
            process.stdout.write(curr.data + " ");
            curr = curr.nextRight;
        }

        process.stdout.write("# ");

        // Find the first node of the next level
        if (levelStart.left !== null)
            levelStart = levelStart.left;
        else if (levelStart.right !== null)
            levelStart = levelStart.right;
        else
            break;
    }
}

// Driver code

    // Constructed binary tree
    //       10
    //      /  \
    //    8     2
    //   /     /
    //  3     4
    let root = new Node(10);
    root.left = new Node(8);
    root.right = new Node(2);
    root.left.left = new Node(3);
    root.right.left = new Node(4);
    connect(root);
    printLevels(root)

Output

10 # 8 2 # 3 4 #

Comment

Explore
