Serialize and Deserialize a Binary Tree

Last Updated : 15 Oct, 2026

Given the root of a binary tree, Complete the functions:

serialize(): Traverse the tree, store node values in an array, and insert -1 wherever a node is null. Returns the array representing the tree.
deSerialize(): Read the values of the array arr[] to reconstruct the tree. An element arr[i] == -1 represents a missing (null) child.

Note: Multiple nodes can have the same data and the node values are always positive.

Examples:

Input: root = [1, 2, 3]

Output: [1, 2, 3]

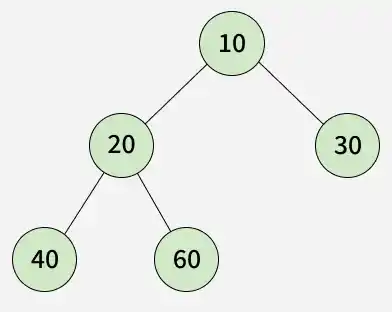

Input: root = [10, 20, 30, 40, 60, N, N]

Output: [10, 20, 30, 40, 60]

Try It Yourself

Table of Content

Preorder Traversal (Recursive) - O(n) Time and O(n) Space
Level Order Traversal - O(n) Time and O(n) Space

Preorder Traversal (Recursive) - O(n) Time and O(n) Space

The idea is to use preorder traversal for serialization. While traversing, if a node is not null, store its value else store -1 as a marker.

Serialization: Perform preorder traversal, store node values and insert -1 wherever a node is null.
Deserialization: Rebuild the tree by reading values in preorder order. If the value is -1, return null. Otherwise, create a node and recursively build its left and right children.

Pseudo-code Idea (Deserialization):

If current value = -1 -> return NULL
Else Create a new node with the current value
Recursively call to build node->left and node->right
Return the node

C++

#include <iostream>
#include <queue>
#include <vector>
using namespace std;

class Node
{
  public:
    int data;
    Node *left, *right;
    Node(int x)
    {
        data = x;
        left = right = nullptr;
    }
};

// Function to store the preorder
void serializePreOrder(Node *root, vector<int> &arr)
{

    // Push -1 if root is null.
    if (root == nullptr)
    {
        arr.push_back(-1);
        return;
    }

    // Push the root into result.
    arr.push_back(root->data);
    serializePreOrder(root->left, arr);
    serializePreOrder(root->right, arr);
}

// Main function to serialize a tree.
vector<int> serialize(Node *root)
{
    vector<int> arr;
    serializePreOrder(root, arr);
    return arr;
}

// Function to restore the array from preorder
Node *deserializePreOrder(int &i, vector<int> &arr)
{

    // if element is -1 return null
    if (arr[i] == -1)
    {
        i++;
        return nullptr;
    }

    // Create the root node.
    Node *root = new Node(arr[i]);
    i++;

    // Create the left and right subtree.
    root->left = deserializePreOrder(i, arr);
    root->right = deserializePreOrder(i, arr);

    return root;
}

Node *deSerialize(vector<int> &arr)
{
    int i = 0;
    return deserializePreOrder(i, arr);
}

// Function to print preorder traversal
void preorder(Node *root)
{
    if (root == nullptr)
        return;

    cout << root->data << " ";
    preorder(root->left);
    preorder(root->right);
}

int main()
{
    //       10
    //     /    \
    //    20    30
    //  /   \
    // 40   60

    Node *root = new Node(10);
    root->left = new Node(20);
    root->right = new Node(30);
    root->left->left = new Node(40);
    root->left->right = new Node(60);

    // Serialize the original tree
    vector<int> arr = serialize(root);

    // Deserialize the tree
    Node *res = deSerialize(arr);

    // Print the deserialized tree in level order
    cout << "[";
    queue<Node *> q;
    q.push(res);
    bool first = true;

    while (!q.empty())
    {
        Node *curr = q.front();
        q.pop();

        if (curr == nullptr)
            continue;

        if (!first)
            cout << ", ";

        cout << curr->data;
        first = false;

        q.push(curr->left);
        q.push(curr->right);
    }

    cout << "]" << endl;

    return 0;
}

Java

import java.util.*;

class Node {
    int data;
    Node left, right;

    Node(int x)
    {
        data = x;
        left = right = null;
    }
}

class GFG {

    // Function to store the preorder
    void serializePreOrder(Node root,
                           ArrayList<Integer> arr)
    {

        // Push -1 if root is null.
        if (root == null) {
            arr.add(-1);
            return;
        }

        // Push the root into result.
        arr.add(root.data);
        serializePreOrder(root.left, arr);
        serializePreOrder(root.right, arr);
    }

    // Main function to serialize a tree.
    ArrayList<Integer> serialize(Node root)
    {
        ArrayList<Integer> arr = new ArrayList<>();
        serializePreOrder(root, arr);
        return arr;
    }

    // Function to restore the array from preorder
    Node deserializePreOrder(int[] i,
                             ArrayList<Integer> arr)
    {

        // If element is -1, return null.
        if (arr.get(i[0]) == -1) {
            i[0]++;
            return null;
        }

        // Create the root node.
        Node root = new Node(arr.get(i[0]));
        i[0]++;

        // Create the left and right subtree.
        root.left = deserializePreOrder(i, arr);
        root.right = deserializePreOrder(i, arr);

        return root;
    }

    Node deSerialize(ArrayList<Integer> arr)
    {
        int[] i = { 0 };
        return deserializePreOrder(i, arr);
    }

    public static void main(String[] args)
    {

        //       10
        //     /    \
        //    20    30
        //  /   \
        // 40   60

        Node root = new Node(10);
        root.left = new Node(20);
        root.right = new Node(30);
        root.left.left = new Node(40);
        root.left.right = new Node(60);

        GFG sol = new GFG();

        // Serialize the original tree
        ArrayList<Integer> arr = sol.serialize(root);

        // Deserialize the tree
        Node res = sol.deSerialize(arr);

        // Print the deserialized tree in level order
        System.out.print("[");
        Queue<Node> q = new LinkedList<>();
        q.add(res);
        boolean first = true;

        while (!q.isEmpty()) {
            Node curr = q.poll();

            if (curr == null)
                continue;

            if (!first)
                System.out.print(", ");

            System.out.print(curr.data);
            first = false;

            q.add(curr.left);
            q.add(curr.right);
        }

        System.out.println("]");
    }
}

Python

from collections import deque

class Node:
    def __init__(self, data):
        self.data = data
        self.left = None
        self.right = None

# Function to store the preorder
def serializePreOrder(root, arr):
    # Push -1 if root is null.
    if root is None:
        arr.append(-1)
        return

    # Push the root into result.
    arr.append(root.data)
    serializePreOrder(root.left, arr)
    serializePreOrder(root.right, arr)

# Main function to serialize a tree.
def serialize(root):
    arr = []
    serializePreOrder(root, arr)
    return arr

# Function to restore the array from preorder
def deserializePreOrder(index, arr):
    # If element is -1, return null.
    if arr[index[0]] == -1:
        index[0] += 1
        return None

    # Create the root node.
    root = Node(arr[index[0]])
    index[0] += 1

    # Create the left and right subtree.
    root.left = deserializePreOrder(index, arr)
    root.right = deserializePreOrder(index, arr)

    return root


def deSerialize(arr):
    index = [0]
    return deserializePreOrder(index, arr)

# Function to print level-order traversal
def levelOrder(root):
    if root is None:
        return []

    result = []
    q = deque([root])

    while q:
        curr = q.popleft()
        result.append(curr.data)

        if curr.left is not None:
            q.append(curr.left)
        if curr.right is not None:
            q.append(curr.right)

    return result


if __name__ == "__main__":
    #       10
    #     /    \
    #    20    30
    #  /   \
    # 40   60

    root = Node(10)
    root.left = Node(20)
    root.right = Node(30)
    root.left.left = Node(40)
    root.left.right = Node(60)

    # Serialize the original tree
    arr = serialize(root)

    # Deserialize the tree
    res = deSerialize(arr)

    # Print the deserialized tree in level order
    print(levelOrder(res))

C#

using System;
using System.Collections.Generic;

public class Node {
    public int data;
    public Node left, right;

    public Node(int x)
    {
        data = x;
        left = right = null;
    }
}

public class GFG {
    // Function to store the preorder
    void serializePreOrder(Node root, List<int> arr)
    {
        // Push -1 if root is null.
        if (root == null) {
            arr.Add(-1);
            return;
        }

        // Push the root into result.
        arr.Add(root.data);
        serializePreOrder(root.left, arr);
        serializePreOrder(root.right, arr);
    }

    // Main function to serialize a tree.
    public List<int> serialize(Node root)
    {
        List<int> arr = new List<int>();
        serializePreOrder(root, arr);
        return arr;
    }

    // Function to restore the array from preorder
    Node deserializePreOrder(ref int i, List<int> arr)
    {
        // If element is -1, return null.
        if (arr[i] == -1) {
            i++;
            return null;
        }

        // Create the root node.
        Node root = new Node(arr[i]);
        i++;

        // Create the left and right subtree.
        root.left = deserializePreOrder(ref i, arr);
        root.right = deserializePreOrder(ref i, arr);

        return root;
    }

    public Node deSerialize(List<int> arr)
    {
        int i = 0;
        return deserializePreOrder(ref i, arr);
    }

    public static void Main()
    {
        //       10
        //     /    \
        //    20    30
        //  /   \
        // 40   60

        Node root = new Node(10);
        root.left = new Node(20);
        root.right = new Node(30);
        root.left.left = new Node(40);
        root.left.right = new Node(60);

        GFG sol = new GFG();

        // Serialize the original tree
        List<int> arr = sol.serialize(root);

        // Deserialize the tree
        Node res = sol.deSerialize(arr);

        // Print the deserialized tree in level order
        Console.Write("[");
        Queue<Node> q = new Queue<Node>();
        q.Enqueue(res);
        bool first = true;

        while (q.Count > 0) {
            Node curr = q.Dequeue();

            if (curr == null)
                continue;

            if (!first)
                Console.Write(", ");

            Console.Write(curr.data);
            first = false;

            q.Enqueue(curr.left);
            q.Enqueue(curr.right);
        }

        Console.WriteLine("]");
    }
}

JavaScript

class Node {
    constructor(data)
    {
        this.data = data;
        this.left = null;
        this.right = null;
    }
}

// Function to store the preorder
function serializePreOrder(root, arr)
{
    if (root === null) {
        arr.push(-1);
        return;
    }

    arr.push(root.data);
    serializePreOrder(root.left, arr);
    serializePreOrder(root.right, arr);
}

// Main function to serialize a tree
function serialize(root)
{
    let arr = [];
    serializePreOrder(root, arr);
    return arr;
}

// Function to restore the tree from preorder
function deserializePreOrder(i, arr)
{
    if (arr[i[0]] === -1) {
        i[0]++;
        return null;
    }

    let root = new Node(arr[i[0]]);
    i[0]++;

    root.left = deserializePreOrder(i, arr);
    root.right = deserializePreOrder(i, arr);

    return root;
}

function deSerialize(arr)
{
    let i = [ 0 ];
    return deserializePreOrder(i, arr);
}

// Function to print level-order traversal
function levelOrder(root)
{
    if (root === null)
        return [];

    let result = [];
    let q = [ root ];

    while (q.length > 0) {
        let curr = q.shift();
        result.push(curr.data);

        if (curr.left !== null)
            q.push(curr.left);

        if (curr.right !== null)
            q.push(curr.right);
    }

    return result;
}

// Driver code
//       10
//     /    \
//    20    30
//  /   \
// 40   60

let root = new Node(10);
root.left = new Node(20);
root.right = new Node(30);
root.left.left = new Node(40);
root.left.right = new Node(60);

// Serialize the original tree
let arr = serialize(root);

// Deserialize the tree
let res = deSerialize(arr);

// Print the deserialized tree in level order
console.log("[" + levelOrder(res).join(", ") + "]");

Output

[10, 20, 30, 40, 60]

Level Order Traversal - O(n) Time and O(n) Space

The idea is to use level-order traversal for serialization. Push the root into a queue and traverse the tree level by level.
For each node, if it exists, store its value and push its left and right children into the queue; if it’s null, store -1 to mark null.
For deserialization, create the root from the first element and push it into a queue. Then, for each element in the array, pop a node from the queue and link its left and right children if the element is -1, the child is null; otherwise, create the node and push it into the queue.

Serialization: Traverse the tree level by level, storing node values and using -1 for null nodes.
Deserialization: Reconstruct the tree using the stored values and a queue to connect the left and right children.

Let us understand with an example:
Input: root = [10, 20, 30, 40, 60, N, N]

The original tree has root 10, children 20 and 30, and children 40 and 60 under node 20.
Serialization visits nodes level by level and stores -1 for null children.
Deserialization uses a queue to restore each node's left and right children.
Serializing the reconstructed tree produces the same serialized array as the original tree.
After removing the -1 markers, the displayed output is [10, 20, 30, 40, 60].

C++

#include <iostream>
#include <queue>
#include <vector>
using namespace std;

class Node
{
  public:
    int data;
    Node *left, *right;
    Node(int x)
    {
        data = x;
        left = right = nullptr;
    }
};

// function to serialize a tree.
vector<int> serialize(Node *root)
{
    vector<int> arr;

    queue<Node *> q;
    q.push(root);

    while (!q.empty())
    {
        Node *curr = q.front();
        q.pop();

        // If curr node is null,
        // append -1 to result.
        if (curr == nullptr)
        {
            arr.push_back(-1);
            continue;
        }

        // else push its value into
        // result and push left and right
        // child nodes into queue.
        arr.push_back(curr->data);

        q.push(curr->left);
        q.push(curr->right);
    }

    return arr;
}

//  function to deserialize a tree.
Node *deSerialize(vector<int> &arr)
{

    if (arr[0] == -1)
        return nullptr;

    // create root node and push
    // it into queue
    Node *root = new Node(arr[0]);
    queue<Node *> q;
    q.push(root);

    int i = 1;
    while (!q.empty())
    {
        Node *curr = q.front();
        q.pop();

        // If left node is not null
        if (arr[i] != -1)
        {
            Node *left = new Node(arr[i]);
            curr->left = left;
            q.push(left);
        }
        i++;

        // If right node is not null
        if (arr[i] != -1)
        {
            Node *right = new Node(arr[i]);
            curr->right = right;
            q.push(right);
        }
        i++;
    }

    return root;
}

// Function to print preorder traversal
void preorder(Node *root)
{
    if (root == nullptr)
        return;

    cout << root->data << " ";
    preorder(root->left);
    preorder(root->right);
}

int main()
{
    //       10
    //     /    \
    //    20    30
    //  /   \
    // 40  60

    Node *root = new Node(10);
    root->left = new Node(20);
    root->right = new Node(30);
    root->left->left = new Node(40);
    root->left->right = new Node(60);

    // Serialize the original tree
    vector<int> arr = serialize(root);

    // Deserialize the tree
    Node *res = deSerialize(arr);

    // Serialize the deserialized tree
    vector<int> arr2 = serialize(res);

    cout << "[";
    bool first = true;

    for (int x : arr2)
    {
        if (x == -1)
            continue;

        if (!first)
            cout << ", ";

        cout << x;
        first = false;
    }

    cout << "]" << endl;

    return 0;
}

Java

import java.util.*;

class Node {
    int data;
    Node left, right;

    Node(int x)
    {
        data = x;
        left = right = null;
    }
}

class GFG {

    // Function to serialize a tree.
    ArrayList<Integer> serialize(Node root)
    {
        ArrayList<Integer> arr = new ArrayList<>();
        Queue<Node> q = new LinkedList<>();
        q.add(root);

        while (!q.isEmpty()) {
            Node curr = q.poll();

            // If curr node is null, append -1.
            if (curr == null) {
                arr.add(-1);
                continue;
            }

            // Store the node value and add its children.
            arr.add(curr.data);
            q.add(curr.left);
            q.add(curr.right);
        }

        return arr;
    }

    // Function to deserialize a tree.
    Node deSerialize(ArrayList<Integer> arr)
    {
        if (arr.get(0) == -1)
            return null;

        // Create root node and push it into the queue.
        Node root = new Node(arr.get(0));
        Queue<Node> q = new LinkedList<>();
        q.add(root);

        int i = 1;

        while (!q.isEmpty()) {
            Node curr = q.poll();

            // Create the left child if it is not null.
            if (arr.get(i) != -1) {
                Node left = new Node(arr.get(i));
                curr.left = left;
                q.add(left);
            }
            i++;

            // Create the right child if it is not null.
            if (arr.get(i) != -1) {
                Node right = new Node(arr.get(i));
                curr.right = right;
                q.add(right);
            }
            i++;
        }

        return root;
    }

    public static void main(String[] args)
    {
        //       10
        //     /    \
        //    20    30
        //  /   \
        // 40  60

        Node root = new Node(10);
        root.left = new Node(20);
        root.right = new Node(30);
        root.left.left = new Node(40);
        root.left.right = new Node(60);

        GFG sol = new GFG();

        // Serialize the original tree.
        ArrayList<Integer> arr = sol.serialize(root);

        // Deserialize the tree.
        Node res = sol.deSerialize(arr);

        // Serialize the deserialized tree.
        ArrayList<Integer> arr2 = sol.serialize(res);

        System.out.print("[");
        boolean first = true;

        for (int x : arr2) {
            if (x == -1)
                continue;

            if (!first)
                System.out.print(", ");

            System.out.print(x);
            first = false;
        }

        System.out.println("]");
    }
}

Python

from collections import deque

class Node:
    def __init__(self, data):
        self.data = data
        self.left = None
        self.right = None

# function to serialize a tree.
def serialize(root):
    arr = []
    q = deque([root])

    while q:
        curr = q.popleft()

        # If curr node is null,
        # append -1 to result.
        if curr is None:
            arr.append(-1)
            continue

        # else push its value into
        # result and push left and right
        # child nodes into queue.
        arr.append(curr.data)
        q.append(curr.left)
        q.append(curr.right)

    return arr

#  function to deserialize a tree.
def deSerialize(arr):
    if arr[0] == -1:
        return None

    # create root node and push
    # it into queue
    root = Node(arr[0])
    q = deque([root])

    i = 1
    while q:
        curr = q.popleft()

        # If left node is not null
        if arr[i]!= -1:
            left = Node(arr[i])
            curr.left = left
            q.append(left)
        i += 1

        # If right node is not null
        if arr[i]!= -1:
            right = Node(arr[i])
            curr.right = right
            q.append(right)
        i += 1

    return root

# Function to print preorder traversal
def preorder(root):
    if root is None:
        return

    print(root.data, end=" ")
    preorder(root.left)
    preorder(root.right)

if __name__ == "__main__":
    #       10
    #     /    \
    #    20    30
    #  /   \
    # 40  60

    root = Node(10)
    root.left = Node(20)
    root.right = Node(30)
    root.left.left = Node(40)
    root.left.right = Node(60)

    # Serialize the original tree
    arr = serialize(root)

    # Deserialize the tree
    res = deSerialize(arr)

    # Serialize the deserialized tree
    arr2 = serialize(res)

    print('[', end="")
    first = True

    for x in arr2:
        if x == -1:
            continue

        if not first:
            print(", ", end="")

        print(x, end="")
        first = False

    print(']')

C#

using System;
using System.Collections.Generic;

public class Node {
    public int data;
    public Node left, right;

    public Node(int x)
    {
        data = x;
        left = right = null;
    }
}

public class GFG {
    // Function to serialize a tree.
    public List<int> serialize(Node root)
    {
        List<int> arr = new List<int>();
        Queue<Node> q = new Queue<Node>();
        q.Enqueue(root);

        while (q.Count > 0) {
            Node curr = q.Dequeue();

            // If curr node is null, append -1.
            if (curr == null) {
                arr.Add(-1);
                continue;
            }

            // Store the node value and add its children.
            arr.Add(curr.data);
            q.Enqueue(curr.left);
            q.Enqueue(curr.right);
        }

        return arr;
    }

    // Function to deserialize a tree.
    public Node deSerialize(List<int> arr)
    {
        if (arr[0] == -1)
            return null;

        // Create root node and push it into the queue.
        Node root = new Node(arr[0]);
        Queue<Node> q = new Queue<Node>();
        q.Enqueue(root);

        int i = 1;

        while (q.Count > 0) {
            Node curr = q.Dequeue();

            // Create the left child if it is not null.
            if (arr[i] != -1) {
                Node left = new Node(arr[i]);
                curr.left = left;
                q.Enqueue(left);
            }
            i++;

            // Create the right child if it is not null.
            if (arr[i] != -1) {
                Node right = new Node(arr[i]);
                curr.right = right;
                q.Enqueue(right);
            }
            i++;
        }

        return root;
    }

    public static void Main()
    {
        //       10
        //     /    \
        //    20    30
        //  /   \
        // 40  60

        Node root = new Node(10);
        root.left = new Node(20);
        root.right = new Node(30);
        root.left.left = new Node(40);
        root.left.right = new Node(60);

        GFG sol = new GFG();

        // Serialize the original tree.
        List<int> arr = sol.serialize(root);

        // Deserialize the tree.
        Node res = sol.deSerialize(arr);

        // Serialize the deserialized tree.
        List<int> arr2 = sol.serialize(res);

        Console.Write("[");
        bool first = true;

        foreach(int x in arr2)
        {
            if (x == -1)
                continue;

            if (!first)
                Console.Write(", ");

            Console.Write(x);
            first = false;
        }

        Console.WriteLine("]");
    }
}

JavaScript

class Node {
    constructor(data)
    {
        this.data = data;
        this.left = null;
        this.right = null;
    }
}

// function to serialize a tree.
function serialize(root)
{
    let arr = [];
    let q = [ root ];

    while (q.length > 0) {
        let curr = q.shift();

        // If curr node is null,
        // append -1 to result.
        if (curr === null) {
            arr.push(-1);
            continue;
        }

        // else push its value into
        // result and push left and right
        // child nodes into queue.
        arr.push(curr.data);
        q.push(curr.left);
        q.push(curr.right);
    }

    return arr;
}

// function to deserialize a tree.
function deSerialize(arr)
{
    if (arr[0] === -1) {
        return null;
    }

    // create root node and push
    // it into queue
    let root = new Node(arr[0]);
    let q = [ root ];

    let i = 1;
    while (q.length > 0) {
        let curr = q.shift();

        // If left node is not null
        if (arr[i] !== -1) {
            let left = new Node(arr[i]);
            curr.left = left;
            q.push(left);
        }
        i++;

        // If right node is not null
        if (arr[i] !== -1) {
            let right = new Node(arr[i]);
            curr.right = right;
            q.push(right);
        }
        i++;
    }

    return root;
}

// Function to print preorder traversal
function preorder(root)
{
    if (root === null) {
        return;
    }

    console.log(root.data + " ");
    preorder(root.left);
    preorder(root.right);
}

// Driver Code
//        10
//      /    \
//     20    30
//   /   \
//  40  60

let root = new Node(10);
root.left = new Node(20);
root.right = new Node(30);
root.left.left = new Node(40);
root.left.right = new Node(60);

// Serialize the original tree
let arr = serialize(root);

// Deserialize the tree
let res = deSerialize(arr);

// Serialize the deserialized tree
let arr2 = serialize(res);

console.log("[");
let first = true;

for (let x of arr2) {
    if (x === -1) {
        continue;
    }

    if (!first) {
        console.log(", ");
    }

    console.log(x);
    first = false;
}

console.log("]");

Output

[10, 20, 30, 40, 60]

Comment

Explore
