Miller’s Theorem

In circuit analysis, it is a helpful method that makes it easier to analyze networks with an impedance connected between the input and output terminals.

• It is especially crucial when analyzing transistor amplifiers at high frequencies since feedback capacitance between terminals influences the behavior of the circuit as a whole.
• Circuit analysis can be made simpler by using Miller's theorem to substitute a feedback impedance with two equivalent impedances connected at the input and output terminals.

Statement

According to Miller's theorem, two equivalent impedances can be used in place of an impedance that is connected between the input and output terminals of a network with a voltage gain:

• One that is attached to ground and the input terminal
• An additional connection between the ground and the output terminal

The analysis of circuits with feedback components is made easier by these equivalent impedances.

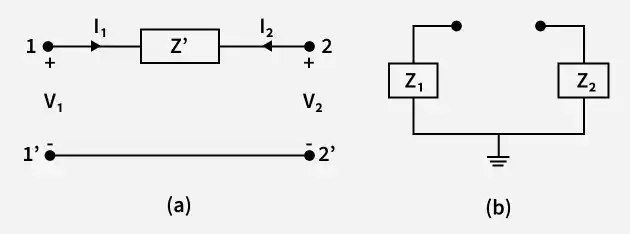

Equivalent Circuit Using Miller’s Theorem

Consider an impedance Z connected between the input voltage V_1 and the output voltage V_2.

Using Miller’s theorem, this impedance can be replaced with:

Z_1 = \frac{Z}{1 - A_v}

Z_2 = \frac{Z}{1 - \frac{1}{A_v}}

where

• Z_1 is the equivalent impedance at the input side
• Z_2 is the equivalent impedance at the output side
• A_v is the voltage gain of the circuit

This transformation converts a feedback impedance into two shunt impedances, which simplifies circuit calculations.

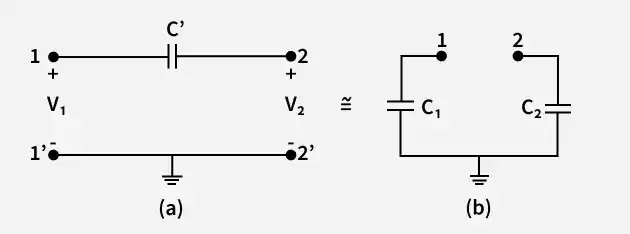

Miller Capacitance

The equivalent input and output capacitances can be found using Miller's theorem when the impedance between the input and output is a capacitor.

The equivalent capacitances are as follows if there is a capacitance C between the input and output terminals:

C_1 = C(1 - A_v)

C_2 = C \left(1 - \frac{1}{A_v}\right)

where

• C_1 is the equivalent input capacitance
• C_2 is the equivalent output capacitance

Since amplifier gain A_v is usually large in magnitude, the effective input capacitance can become much larger than the original capacitance.

Miller Effect in Common Emitter Amplifier

There is a tiny capacitance between the base and collector terminals of a common emitter (CE) amplifier. The base-collector junction capacitance is the name given to this capacitance.

Due to the Miller effect:

• At the input, the feedback capacitance manifests as a significantly greater capacitance.
• The amplifier's high-frequency behavior is impacted by this increased input capacitance.

Because of this, even a tiny base-collector capacitance can have a big impact on the circuit is performance.

Impact on High-Frequency Response

Transistor amplifiers' high-frequency response is largely determined by the Miller effect.

• It raises the amplifier's effective input capacitance.
• The amplifier's bandwidth is decreased by the increased capacitance.
• Reduces the amplifier's upper cutoff frequency.
• Restricts the amplifier's capacity to function at extremely high frequencies.

Miller's theorem is frequently applied in the analysis and design of high-frequency amplifier circuits due to these effects.

Advantages

• Makes Circuit Analysis Simpler: Creates equal input and output impedances from a feedback impedance between input and output.
• Cuts Down on Circuit Complexity: Simplifies the mathematical analysis of intricate amplifier circuits.
• Beneficial for High-Frequency Analysis: Helps in the analysis of feedback capacitances impact on circuits for high-frequency amplifiers.
• Assists in Calculating Effective Capacitance: Makes it simple to calculate transistor amplifiers' equivalent input and output capacitances.

Disadvantages

• Needs a Known Voltage Gain: Only when the circuit voltage gain is known can the theorem be used.
• Reduced Precision in Nonlinear Circuits: It might not be accurate in nonlinear situations because it assumes linear circuit performance.
• Limited Useful Understanding: Although the theory makes the circuit mathematically simpler, it does not always provide a clear picture of the physical behavior.
• Not Fit for Every Kind of Circuit: It is primarily helpful for circuits when the input and output terminals have a feedback impedance.

Applications

• Analysis of Amplifier Circuits: Helps simplify circuits containing impedance between the input and output terminals.
• Design of High-Frequency Amplifiers: Helps in the high-frequency analysis of internal transistor capacitances.
• Common Emitter Amplifiers: Used to calculate the base-collector capacitance-induced effective input capacitance.
• Communication Circuits: Supports the study of bandwidth limitations and frequency response in RF systems.
