Backpropagation in Neural Network

Backpropagation is an algorithm that trains neural networks by reducing prediction error. It works by propagating errors backward, computing gradients using the chain rule and updating weights and biases to improve performance.

• Computes gradients of the loss function with respect to each weight using the chain rule
• Updates weights and biases efficiently to reduce error
• Scales well to deep and complex neural networks
• Enables automatic learning and continuous improvement across training iterations

Working of Back Propagation Algorithm

The Back Propagation algorithm involves two main steps:

1. Forward Pass Work

In forward pass, input data moves through the network to generate an output.

• Input data is passed to the input layer and forwarded to hidden layers
• Each neuron computes a weighted sum and adds a bias
• Activation functions (like ReLU) are applied to produce outputs
• Outputs from one layer become inputs to the next layer
• Final layer uses functions like softmax to produce predictions (e.g., probabilities for classification)

2. Backward Pass

In this step, the error between predicted and actual output is propagated backward to update weights and biases. Error is calculated (e.g., using Mean Squared Error)

\text{MSE} = (\text{Predicted Output} - \text{Actual Output})^2

• Gradients are computed using the chain rule
• Weights and biases are updated to reduce the error
• Process continues layer by layer from output to input
• Derivatives of activation functions are used to compute gradients effectively

Example

Let’s walk through an example of Back Propagation in machine learning. Assume the neurons use the sigmoid activation function for the forward and backward pass. The target output is 0.5 and the learning rate is 1.

Forward Propagation

1. Initial Calculation

The weighted sum at each node is calculated using:

a _j =∑(w_i ,j∗x _i )

Where,

• a_j is the weighted sum of all the inputs and weights at each node
• w_{i,j} represents the weights between the i^{th}input and the j^{th} neuron
• x_i represents the value of the i^{th} input

O (output): After applying the activation function to a, we get the output of the neuron:

o_j = activation function(a_j )

2. Sigmoid Function

The sigmoid function returns a value between 0 and 1, introducing non-linearity into the model.

y_j = \frac{1}{1+e^{-a_j}}

3. Computing Outputs

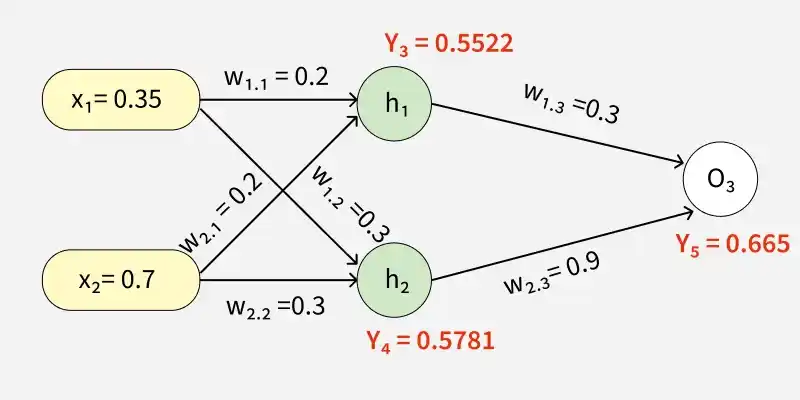

At h1 node

\begin {aligned}a_1 &= (w_{1,1} x_1) + (w_{2,1} x_2) \\& = (0.2 * 0.35) + (0.2* 0.7)\\&= 0.21\end {aligned}

Once we calculated the a₁ value, we can now proceed to find the y₃ value:

y_j= F(a_j) = \frac 1 {1+e^{-a_1}}

y_3 = F(0.21) = \frac 1 {1+e^{-0.21}}

y_3 = 0.5522

Similarly find the values of y₄ at h₂ and y₅ at O₃

a_2 = (w_{1,2} * x_1) + (w_{2,2} * x_2) = (0.3*0.35)+(0.3*0.7)=0.315

y_4 = F(0.315) = \frac 1{1+e^{-0.315}} = 0.5781

a_3 = (w_{1,3}*y_3)+(w_{2,3}*y_4) =(0.3*0.5522)+(0.9*0.5781) =0.686

y_5 = F(0.686) = \frac 1 {1+e^{-0.686} } = 0.665

4. Error Calculation

Our actual output is 0.5 but we obtained 0.67. To calculate the error we can use the below formula:

Error_j= y_{target} - y_5

\text{=>} \space 0.5 - 0.665 = -0.165

Using this error value we will be backpropagating.

Back Propagation Calculation

1. Calculating Gradients

The change in each weight is calculated as:

\Delta w_{ij} = \eta \times \delta_j \times O_j

Where:

• \delta_j​ is the error term for each unit,
• \eta is the learning rate.

2. Output Unit Error

For O₃:

\delta_5 = y_5(1-y_5) (y_{target} - y_5)

= 0.665(1-0.665)(-0.165) = -0.0367

3. Hidden Unit Error

For h₁:

\delta_3 = y_3 (1-y_3)(w_{1,3} \times \delta_5)

= 0.5522(1-0.5522)(0.3 \times -0.0367) = -0.00273

For h₂:

\delta_4 = y_4(1-y_4)(w_{2,3} \times \delta_5)

=0.5781 (1-0.5781)(0.9 \times -0.0367) = -0.0080

4. Weight Updates

The general formula is: {\Delta w_{j,3}=\eta\delta_5 y_j}

Therefore:

• \Delta w_{1,3}=\eta\delta_5y_3
• \Delta w_{2,3}=\eta\delta_5y_4

For w_{1,3}_:

\Delta w_{1,3} = 1\times(-0.0367)\times0.5522 \approx-0.0203:

w_{1,3}(\text{new}) = 0.3+(-0.0203) w_{1,3}\approx0.2797

For w_{2,3}:

\Delta w_{2,3} = 1 \times (-0.0367) \times 0.5781 = -0.0212

w_{2,3}(\text{new}) = -0.0212 + 0.9 = 0.8788

For the weights from the input layer to the hidden layer:

\Delta w_{1,1}=\eta\delta_3x_1 \\ \Delta w_{2,1}=\eta\delta_3x_2 \\ \Delta w_{1,2}=\eta\delta_4x_1 \\ \Delta w_{2,2}=\eta\delta_4x_2 \\

Using: \delta_3=-0.00273, \delta_4=-0.0080

For w_{1,1}:

\Delta w_{1,1} = 1\times(-0.00273)\times0.35 \approx-0.00096

w_{1,1}(\text{new}) = 0.2+(-0.00096) \approx0.19904

For w_{2,1}:

\Delta w_{2,1} = 1\times(-0.00273)\times0.7 \approx-0.00191

w_{2,1}(\text{new}) = 0.2+(-0.00191) \approx0.19809

For w_{1,2}:

\Delta w_{1,2} = 1\times(-0.0080)\times0.35 \approx-0.00280

w_{1,2}(\text{new}) = 0.3+(-0.00280) \approx0.29720

For w_{2,2}:

\Delta w_{2,2} = 1\times(-0.0080)\times0.7 \approx-0.00560

w_{2,2}(\text{new}) = 0.3+(-0.00560) \approx0.29440

Updated weights:

w_{1,1}=0.19904 \\ w_{2,1}=0.19809 \\ w_{1,2}=0.29720 \\ w_{2,2}=0.29440 \\ w_{1,3}=0.27970 \\ w_{2,3}=0.87880 \\

The update rule follows the standard backpropagation formula: each weight change equals the learning rate multiplied by the receiving neuron’s delta and the sending neuron’s output.

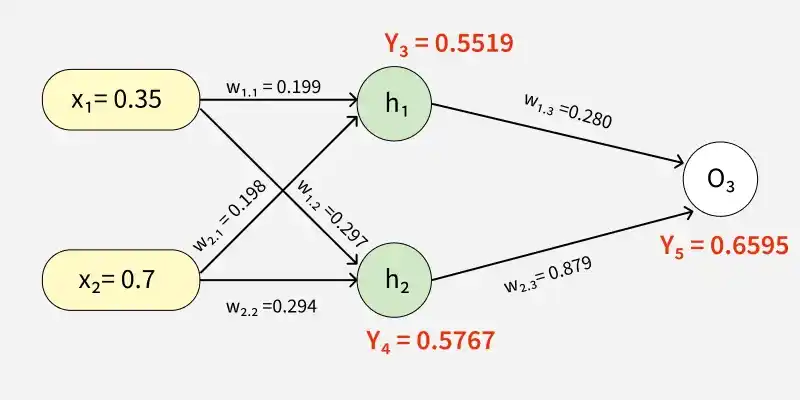

The updated weights are illustrated below

After updating the weights, the forward pass is repeated, hence giving:

y_3 \approx 0.5519 \\ y_4 \approx 0.5767 \\ y_5 \approx 0.6595

Since y_5=0.6595 is still not the target output, the process of calculating the error and backpropagating continues until the desired output is reached.

This process demonstrates how backpropagation iteratively updates weights by minimizing the error.

\text{Error}=y_{\text{target}}-y_5 =0.5-0.6595\approx-0.1595

This process continues until the network’s output becomes sufficiently close to the target output.

Implementation

This code demonstrates how Back Propagation is used in a neural network to solve the XOR problem. The neural network consists of:

1. Defining Neural Network

The network consists of 2 input neurons, 4 hidden neurons and 1 output neuron, using the sigmoid activation function.

• input_size and hidden_size define the layer sizes
• weights_input_hidden initializes weights from input to hidden layer
• weights_hidden_output initializes weights from hidden to output layer
• bias_hidden and bias_output initialize bias terms for respective layers

import numpy as np


class NeuralNetwork:
    def __init__(self, input_size, hidden_size, output_size):
        self.input_size = input_size
        self.hidden_size = hidden_size
        self.output_size = output_size

        self.weights_input_hidden = np.random.randn(
            self.input_size, self.hidden_size)
        self.weights_hidden_output = np.random.randn(
            self.hidden_size, self.output_size)

        self.bias_hidden = np.zeros((1, self.hidden_size))
        self.bias_output = np.zeros((1, self.output_size))

    def sigmoid(self, x):
        return 1 / (1 + np.exp(-x))

    def sigmoid_derivative(self, x):
        return x * (1 - x)

2. Defining Feed Forward Network

In Forward pass inputs are passed through the network activating the hidden and output layers using the sigmoid function.

• Computes hidden layer activation using weighted sum and bias
• Applies sigmoid to get hidden layer output
• Computes output layer activation from hidden outputs
• Applies sigmoid to produce final predicted output

def feedforward(self, X):
    self.hidden_activation = np.dot(
        X, self.weights_input_hidden) + self.bias_hidden
    self.hidden_output = self.sigmoid(self.hidden_activation)

    self.output_activation = np.dot(
        self.hidden_output, self.weights_hidden_output) + self.bias_output
    self.predicted_output = self.sigmoid(self.output_activation)

    return self.predicted_output

3. Defining Backward Network

In the backward pass, the network calculates the error and updates weights using gradients from the sigmoid function.

• Computes output error as difference between actual and predicted values
• Calculates output delta using sigmoid derivative
• Propagates error to hidden layer using dot product
• Computes hidden delta using sigmoid derivative
• Updates weights between hidden output and input hidden layers

def backward(self, X, y, learning_rate):
    output_error = y - self.predicted_output
    output_delta = output_error * \
        self.sigmoid_derivative(self.predicted_output)

    hidden_error = np.dot(output_delta, self.weights_hidden_output.T)
    hidden_delta = hidden_error * self.sigmoid_derivative(self.hidden_output)

    self.weights_hidden_output += np.dot(self.hidden_output.T,
                                         output_delta) * learning_rate
    self.bias_output += np.sum(output_delta, axis=0,
                               keepdims=True) * learning_rate
    self.weights_input_hidden += np.dot(X.T, hidden_delta) * learning_rate
    self.bias_hidden += np.sum(hidden_delta, axis=0,
                               keepdims=True) * learning_rate

4. Training Network

The network is trained over 10,000 epochs using the Back Propagation algorithm with a learning rate of 0.1 progressively reducing the error.

• output = self.feedforward(X): computes the output for the current inputs
• self.backward(X, y, learning_rate): updates weights and biases using Back Propagation
• loss = np.mean(np.square(y - output)): calculates the mean squared error (MSE) loss

def train(self, X, y, epochs, learning_rate):
    for epoch in range(epochs):
        output = self.feedforward(X)
        self.backward(X, y, learning_rate)
        if epoch % 4000 == 0:
            loss = np.mean(np.square(y - output))
            print(f"Epoch {epoch}, Loss:{loss}")

5. Testing Neural Network

• X = np.array([[0, 0], [0, 1], [1, 0], [1, 1]]): defines the input data
• y = np.array([[0], [1], [1], [0]]): defines the target values
• nn = NeuralNetwork(input_size=2, hidden_size=4, output_size=1): initializes the neural network
• nn.train(X, y, epochs=10000, learning_rate=0.1): trains the network
• output = nn.feedforward(X): gets the final predictions after training

X = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
y = np.array([[0], [1], [1], [0]])

nn = NeuralNetwork(input_size=2, hidden_size=4, output_size=1)
nn.train(X, y, epochs=10000, learning_rate=0.1)

output = nn.feedforward(X)
print("Predictions after training:")
print(output)

Output:

Download full code from here

Advantages

• Easy to implement and beginner-friendly, as it updates weights using error derivatives
• Simple and flexible, making it suitable for different types of networks like feedforward, CNNs and RNNs
• Efficient in learning, as it directly adjusts weights based on error, especially in deep networks
• Helps models generalize well, improving performance on unseen data
• Scales effectively with large datasets and complex architectures

Challenges

• Gradients can become very small in deep networks, making learning slow or difficult (vanishing gradient problem)
• Gradients can grow too large, causing unstable training and divergence (exploding gradients)
• Complex models may overfit the training data instead of learning general patterns
