Gradients in Figma are smooth transitions between two or more colors or tints of the same color. They can be applied to fills and strokes to create different visual effects in a design.
Types of Gradients in Figma

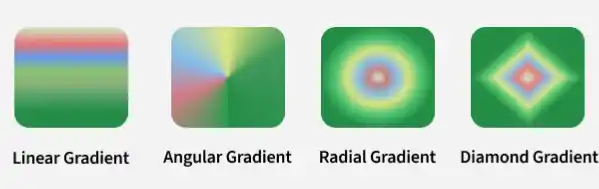

There are four types of gradients in Figma:
- Linear Gradient: Creates a smooth color transition along a straight line.
- Angular Gradient: Creates a color transition around a central point in a circular direction.
- Diamond Gradient: Creates a color transition outward in a diamond-shaped pattern.
- Radial Gradient: Creates a color transition outward from a central point in a circular pattern.
Ways to Add Gradients in Figma

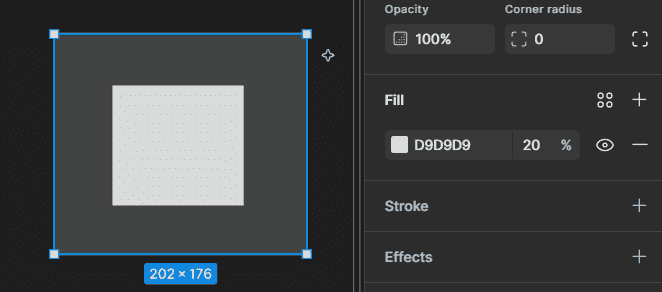

1. Select the layer on the canvas that you want to apply a gradient to.
2. In the right sidebar, click the color swatch in the "Fill" or "Stroke" section to open the color picker. Select "Gradient" from the fill options.

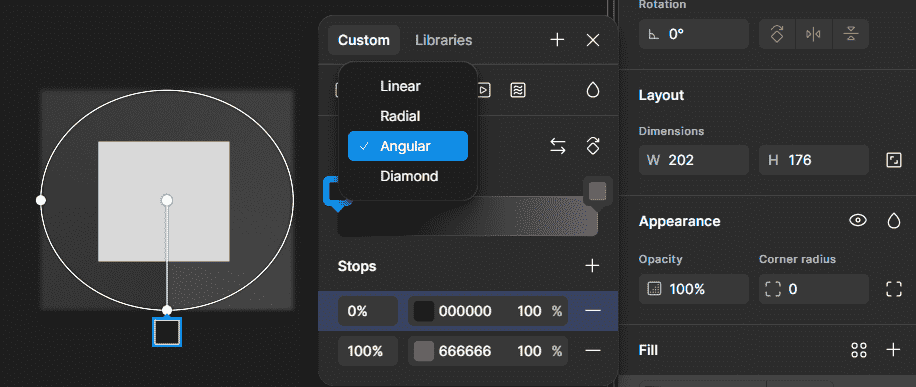

3. Select the gradient type you want to use: Linear, Radial, Angular, or Diamond.
Steps to add Multiple Colors to a Gradient in Figma
Apply gradient to an element by following the above steps.

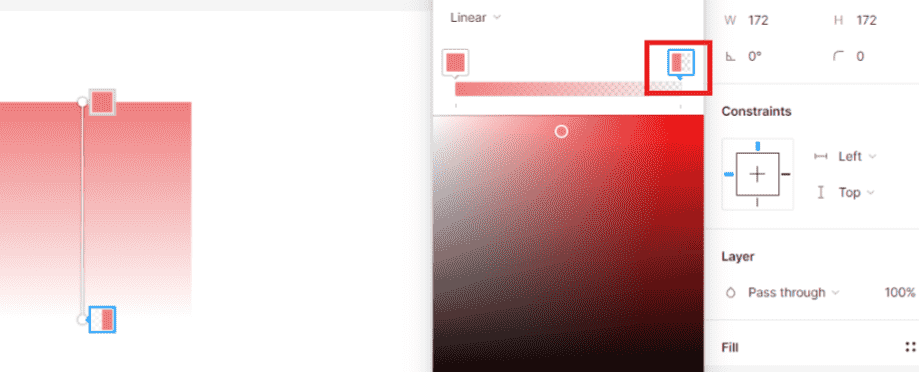

Step 1: From the color slider below the gradient drop down click on the second color icon.

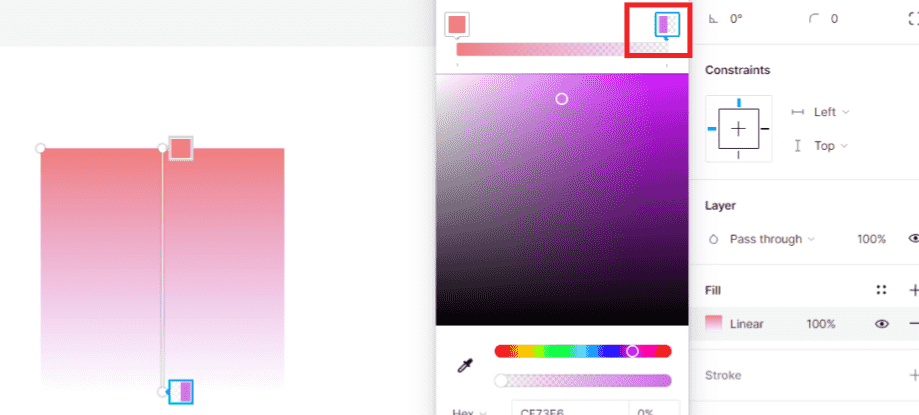

Step 2: Select the color you want to apply.
Step 3: Change the opacity of the color from the slider below the color palette.

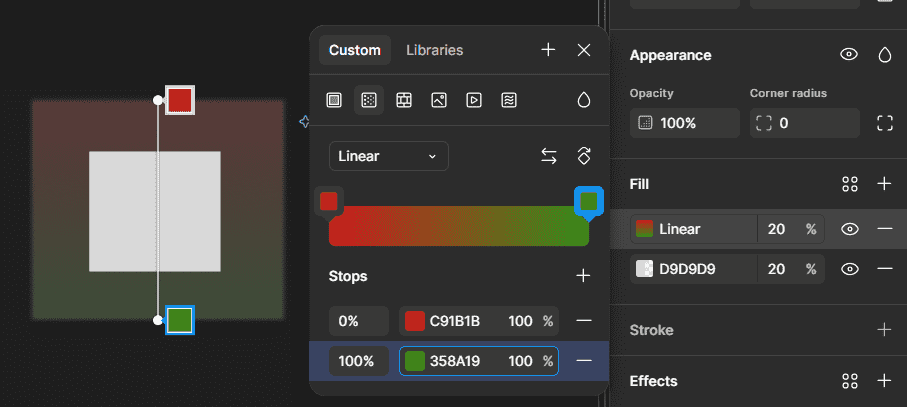

Step 4: Multiple colors can be added through clicking on the bar below the gradient drop down menu.
Adjusting a Gradient
Figma provides options to adjust the direction and arrangement of a gradient.
- Move Color Stops Drag a color stop to change where the color appears in the gradient.
- Flip Gradient: Reverse the direction of the gradient.
- Rotate Gradient: Change the orientation of the gradient.
