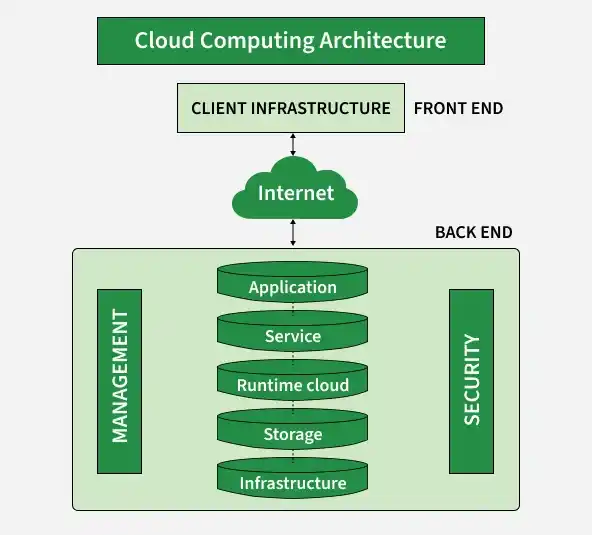

Cloud computing provides on-demand access to computing resources over the Internet, including servers, storage, databases, networking, software, and processing power. Cloud architecture incorporates concepts from SOA and EDA and is broadly divided into two main sections: Frontend and Backend.
- SOA: Organizes functionality into independent, communicating services.
- EDA: Enables components to respond to events or system changes.
1. The Frontend (Client Side)
It contains all the user interfaces and client infrastructure required for end-users to interact with the cloud. This is the visible interface through which users interact directly with the cloud environment. It acts as the gateway, allowing users to seamlessly access cloud-based services without understanding the underlying infrastructure.
Client Infrastructure
The client infrastructure refers to the hardware and software components used by the end-user to access cloud services. It forms the frontend of cloud architecture and provides the interface through which users interact with cloud applications.
- Hardware: Devices such as laptops, desktop computers, smartphones, and tablets.
- Software: Web browsers, mobile applications, and other client-side software used to access cloud services.
- User Interface: Provides a Graphical User Interface (GUI) through which users can interact with cloud applications.
- Communication: Sends user requests to the cloud through the Internet and receives the required data or results.
- Access: Allows users to access cloud services from different devices and locations.
2. The Backend (Cloud Provider Side)
This is the "cloud" itself. It consists of all the resources required to provide cloud computing services. It comprises of huge data storage, virtual machines, security mechanism, services, deployment models, servers etc.
Application
It can be software or platforms that process client requests and deliver the necessary outcomes to end-users. The specific application selected depends heavily on client requirements and resource availability.
- Service Delivery: Provides the required services or results to end-users.
- Resource Utilization: Uses available cloud resources such as computing power, storage, and databases.
- User Requirements: Applications are selected or designed based on the specific needs of the client.
Services
It manages each and every operations that runs on the cloud computing platform. It manages the different types of services that users can access based on their specific requirements. The three major distinct categories of services in cloud computing:
- Software-as-a-Service (SaaS) is a cloud application service.
- Platform-as-a-Service (PaaS) is a cloud platform service.
- Infrastructure-as-a-Service (IaaS) is a cloud infrastructure service.
Runtime Cloud
It provides virtual machines an environment for executing and running programs at the same time. In other words, it performs similarly to a cloud-based operating system software that uses virtualization technologies to execute services, enabling multiple run times on the same server.
In other words:
- A physical server can host multiple virtual machines.
- Each virtual machine can have its own runtime environment.
- Different applications can run simultaneously without interfering with one another.
- The runtime provides the necessary environment for applications to execute properly.
- This allows cloud providers to use physical servers efficiently.
Storage
It is one of the most important components of cloud computing. These services are used to store and manage data. Several users can access the data simultaneously within the cloud storage system. Popular cloud storage solutions include:
- Amazon S3 is a scalable object storage service
- Microsoft Azure Storage includes blob storage, table storage, and file shares
- Google Cloud Storage offers high-performance and durable storage for various workloads
Infrastructure
It provides services on three levels: Host, Network, and Application.
- Host level provides computing resources required to run cloud services.
- Network level provides communication between cloud resources and users.
- Application level provides the actual software and services used by users.
Management
It allocates specific resources for tasks and coordinates multiple functions simultaneously within the cloud environment. It ensures that by:
- Monitoring the performance and availability of cloud resources.
- Allocating and managing computing, storage, and networking resources.
- It helps increase or decrease resources according to workload.
- It handles activities such as configuration, maintenance, resource utilization, and billing.
Security
It protects cloud resources, applications, services, infrastructure, and data from unauthorized access and security threats. The security layer ensures:
- Secure authentication & identity management (e.g., AWS IAM, Azure Active Directory)
- Data encryption for sensitive information
- Firewall protection & threat detection to mitigate cyberattacks
- Disaster recovery & backup mechanisms for data resilience
Internet
The Internet acts as a communication medium or bridge between the frontend and backend of a cloud computing architecture. It allows users to connect to cloud services and enables data and requests to travel between the user's device and the cloud servers.
Key Benefits
Implementing a well-designed cloud architecture yields significant operational advantages:
- Drastically reduces IT operating costs and capital expenditures.
- Allows resources to instantly scale up during traffic spikes and scale down to save money.
- Distributes data across multiple geographic zones, ensuring high availability and robust disaster recovery.
- Centralizes security protocols, offering enterprise-grade protection and compliance.
- Modularizes the system, making it easier to process data, update applications, and manage workloads.
Real-World Applications
Here is how these architectural components work together in everyday platforms:
1. Online Learning Platforms (e.g., GeeksforGeeks) Behind the scenes of educational platforms, strong DevOps and Site Reliability Engineering (SRE) practices ensure high availability for students worldwide.
- Storage: Video tutorials, study materials, and other educational content are stored reliably using cloud storage such as Amazon S3.
- Compute & Services: It execute tasks such as grading coding quizzes, updating user progress, and delivering course content.
- Security: Services such as AWS IAM manage student authentication and access permissions, helping protect accounts and data.
2. E-Commerce Websites (e.g., Amazon, Flipkart) When you browse an online store, you are interacting with the frontend GUI.
- Storage: Product images, customer information, and other data are stored using cloud storage and databases.
- Compute & Services: It handle tasks such as processing orders, managing shopping carts, and distributing traffic across servers.
- Security: Authentication, encryption, and access controls protect customer accounts, personal information, and payment data.
3. Mobile Food Delivery Apps (e.g., Zomato, Swiggy) When you order food via the frontend mobile app, complex cloud routing happens instantly.
- Storage: User information, restaurant details, menus, and order history are stored using cloud storage and databases.
- Compute & Services: It handle tasks such as processing orders, notifying restaurants, assigning delivery partners, and processing payments.
- Security: Authentication, encryption, and access controls protect user accounts, personal information, and payment data.
