Using Docker Compose To Run Multi Container Applications

Docker Compose simplifies the process of running applications that require multiple containers. It allows you to define and manage all application services using a single YAML configuration file.

• Single Configuration: Define all required services in one docker-compose.yml file.
• Multiple Containers: Manage multiple components, such as a Flask application and a Redis database, together.
• Easy Management: Create, start, and stop all containers using simple Docker Compose commands.
• Purpose: Compare running the application with and without Docker Compose to understand its benefits.

Creating a Working Environment For The Project

Step 1: Create a directory gfg_docker_compose that holds the our project

$ mkdir gfg_docker_compose

Step 2: Move to that directory making as your working directory by running the following command.

$ cd gfg_docker_compose

Step 3: Create the requirements.txt file

$ touch requirements.txt

Step 4: Copy the below provided code in that requirements.txt file.

flask
redis

Step 5: Create the file app.py . It will used to have the code for our flask app

$ touch app.py

Step 6: Now the Copy the below code to app.py

from flask import Flask, request, json
from redis import Redis

# initializing a new flask app
app = Flask(__name__)

# initializing a new redis database
# Hostname will be same as the redis service name
# in the docker compose configuration
redis = Redis(host ="localhost", db = 0, socket_timeout = 5,
              charset ="utf-8", decode_responses = True)

# Our app has a single route allowing two methods POST and GET.


@app.route('/', methods =['POST', 'GET'])
def animals():

    if request.method == 'POST':
        # Take the name of the animal
        name = request.json['name']
        # push the name to the end of animals list in the redis db
        redis.rpush('animals', {'name': name})
        # return a success
        return jsonify({'status': 'success'})

    if request.method == 'GET':
        # return complete list of names from animals
        return jsonify(redis.lrange('animals', 0, -1))

Explanation Of The Containerized Application

• Here we are simply accepting two methods GET and POST requests for `/` route.
• When ever a POST request is done with the name, the name is added at the end of the animals list.
• For GET request we will return the list of names from animals list.

Step 7: Create the Dockerfile named file.

$ touch Dockerfile

Step 8: Now try to copy the below code to that created Dockerfile.

# Pulling the base image
FROM python:3.7.0-alpine3.8

# Creating a folder and moving into it
WORKDIR /usr/src/app

# Copying the dependency list
COPY requirements.txt ./

# Installing the python dependencies
RUN pip install --no-cache-dir -r requirements.txt

# Copying the flask code into the container
COPY . .

ENV FLASK_APP=app.py

EXPOSE 5000

# Starting the server
CMD flask run --host=0.0.0.0

Explanation Of The Dockerfile

The Dockerfile defines how the Flask application image is built and configured. It uses a Python base image, installs the required dependencies, copies the application code, and starts the Flask server.

• Base Image: Uses python:3.7.0-alpine3.8 as the base image.
• Dependencies: Copies requirements.txt and installs the required Flask dependencies.
• Application Code: Copies app.py into the container.
• Start Application: Runs the Flask application inside the container.
• Next: The application is first run without Docker Compose and then with Docker Compose to understand the benefits of Compose.

Deploying Docker Application Without Docker Compose Tool

Running a multi-container application without Docker Compose requires managing each container and its configuration separately, making the process more time-consuming.

• Manual Setup: Each container must be created and started individually.
• Configuration: You need to remember and manage the required commands and settings for every container.
• Project Files: The gfg_docker_compose directory currently contains requirements.txt, app.py, and Dockerfile
• Next Step: The application will first be deployed manually without Docker Compose.

Step 1: Fristly In this Approach we will run and start our redis server container with docker run command as shown below:

$ docker run --name=redis redis:4.0.11-alpine

Step 2: From the following practical screenshot, you can see the software packages of redis version4.0.11 with alpine image is getting downloaded extracting docker hub and after starting the redis server.

 Step 3: Now our redis has started so you should take it's container IP address

gfg_docker_compose/ $ docker inspect --format='{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' redis

• This gives you a IP address which you need to put it to the host parameter in the app.py.
• Now the line looks like in app.py

redis = Redis(host="IPAddress", db=0, socket_timeout=5,
              charset="utf-8", decode_responses=True)

where IPAddress is the IP address you get from the redis container.

Step 4: Build the flask application

 $  docker build -t gfg/flask-app

Step 5: Wait for some time, till the application image has built. Now we will start our flask app container as well.

Step 6: Open a new terminal tab and run the below command

$ docker run -p 5000:5000 gfg/flask-app

Step 7: So using that command we will pull the gfg/flask-app which we have built earlier and run our flask app container. Also, -p is used to map the port 5000 from container to the host.

Step 8: Finally when you route to the flask app on a browser you should see something like this.

Deploying Docker Application With Docker Compose Tool

Docker Compose simplifies multi-container application setup by defining all container configurations in a docker-compose.yml file. It allows developers to start, stop, and share applications easily using simple commands.

Step 1: Firstly create the docker-compose.yml file.

$  touch docker-compose.yml

• Till now we are having the created files such as app.py ,requirements.txt, Dockerfile and Docker-compose.yml file in the gfg_docker_compose working directory. The project tree is listed here:

gfg_docker_compose
 --->> app.py
 --->> requirements.txt
--->> Dockerfile
--->> docker-compose.yml

Step 2: Now copy the below YAML code to docker-compose.yml file.

version: '3'

services:
  app:
    build: .
    image: gfg/flask-app
    environment:
      - FLASK_ENV=development
    ports:
      - 5000:5000

  redis:
    image: redis:4.0.11-alpine

Explanation Of Docker Compose File With Its Terminologies

The following are the keywords specified in the above configured Docker Compose File:

• version: states the version of docker-compose to use, here we are using version 3
• services: holds all our application services (container) configurations.
• app:We have named our flask app as app service, feel free to give it any other name you want.
• build:relative path to the Dockerfile
• image: name of the final docker application image
• environment: list of environment variables
• ports: list of ports to be mapped from the container to the host machine
• redis:name of our redis service
• image: name of the image.

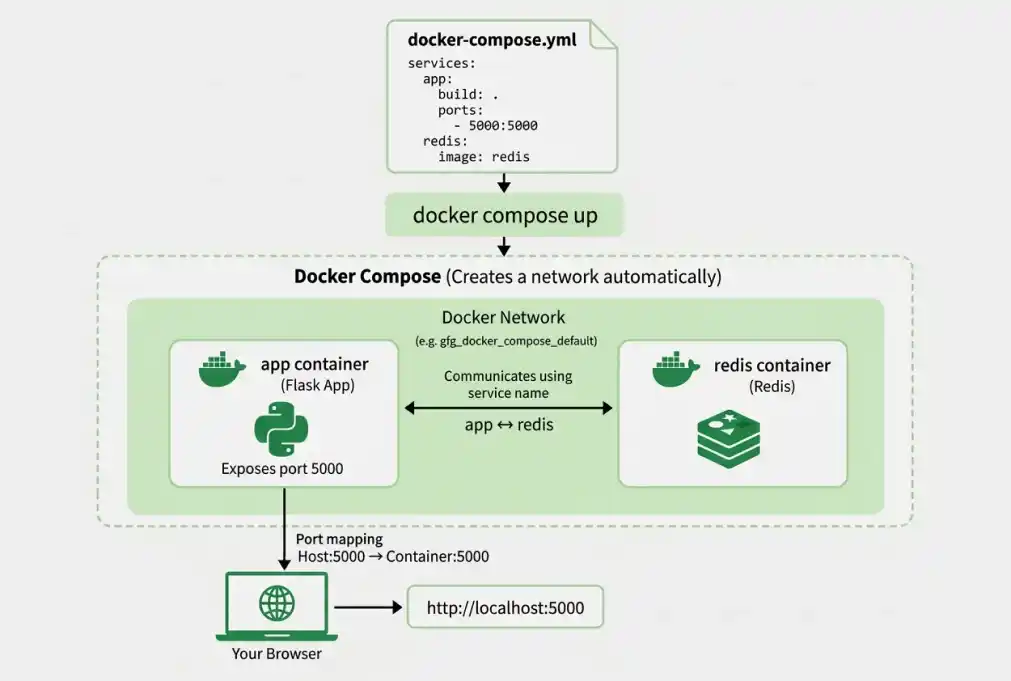

NOTE: Docker Compose automatically creates a network where containers can communicate using their service names as hostnames. Therefore, redis is used as the host in app.py.

Step 3: Now Start the application with the following docker compose command:

$  docker-compose up --build

• --build is used to explicitly mention to build the images before starting the application.
• You can see the application working as below

Step 4: To stop the complete application run the following docker compose command:

$  docker-compose down

• Using the docker-compose tool, we can make the multi-container docker application setup process much faster and easier than the usual way.
